PRIMUS® Ureteroscope

Advanced Single-Use Endoscopic Imaging

Why PRIMUS® Ureteroscope?



  • Safety – Always a new, sterile ureteroscope, avoiding the need for reprocessing or repair.
  • Smart features – Variety of features also for economic variants such as rotatable shaft or bending lock, delivering benefits to the surgeon to be safer and more efficient during the procedure.
  • Imaging – The PRIMUS® Monitor functions as both a display and processor unit – usable as a stand-alone monitor or with your video tower.
  • Suction function – Usage of suction during RIRS can help reduce the intrarenal pressure and temperature, clear the view and remove stone dust (only Premium model)
Suction

Smart Features



  • Bending lock to lock deflection of distal tip
  • 1:1 torque
  • Rotatable sleeve for hard to reach areas and increased precision
  • Ergonomic handle
  • Integrated suction function (only Premium model)
  • Fixated Tuohy Borst adapter

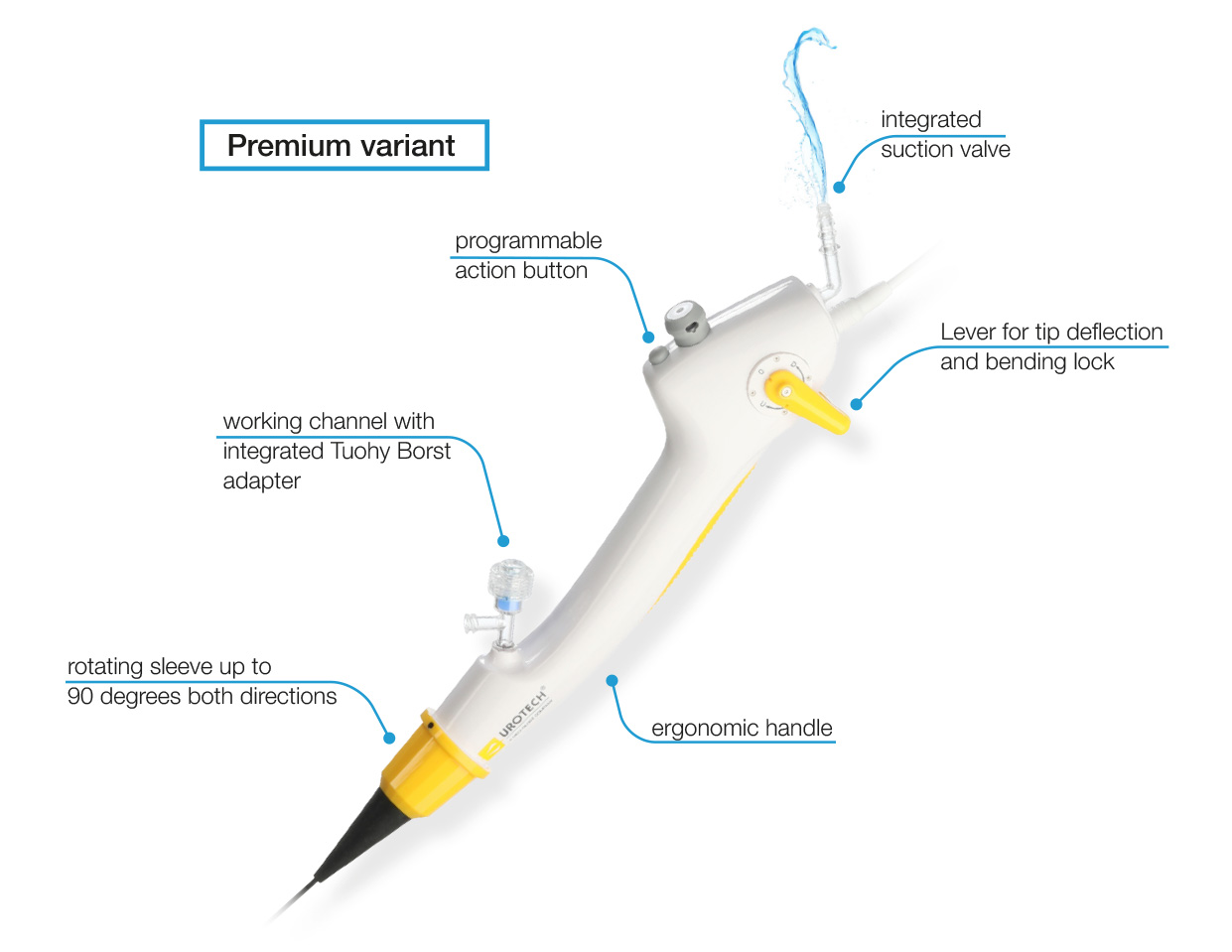

The picture shows the Premium model.

Product  Specifications

The picture shows the Premium model.

PRIMUS® Ureteroscope

Models Order code Specifications
Outer diameter tube Working length of shaft Size working channel Deflection (up/down) Field of view
Premium
with suction
URS-7.5S 7.5 CH/FR 700 mm 3.6 CH/FR Standard deflection 285°/285° 120°
URS-7.5S-R Reverse deflection 285°/285°
Economic URS-8.4 8.4 CH/FR 700 mm 3.6 CH/FR Standard deflection 285°/285° 110°
URS-8.4-R Reverse deflection 285°/285°

PRIMUS® Cystoscope

Order code Specifications
Outer diameter tube Working length of shaft Size working channel Deflection (up/down) Field of view
CYSHD-16 15.3 CH/FR 400 mm 6.6 CH/FR Standard deflection 210°/210° 110°
CYSHD-16-R Reverse deflection 210°/210°

Single-use high definition Cystoscope with 15.3 CH/FR outer diameter

Read more

Both devices compatible with

PRIMUS® Monitor

Order code Specifications
Max. resolution Display Internal storage capacity Digital video output Integrated battery
MEDVM-D1 1920×1080 15.6″ TFT LCD 64 GB HDMI and SDI 4 hours

Digital video HD-Monitor for all PRIMUS® endoscopic devices

Read more
