Why PRIMUS® Monitor?
- Integrated battery function
- Compatible with all PRIMUS® scopes
- DICOM connectivity
- Allows usage of two scopes simultaneously
- Use as stand-alone monitor or in combination with your video tower
- HD imaging quality in cystoscopy
Product Specifications

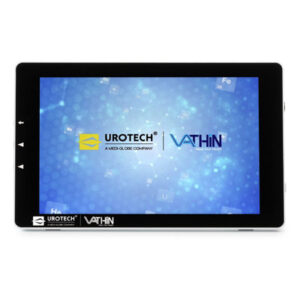

PRIMUS® Monitor
| Article-no. | Specifications | ||||
|---|---|---|---|---|---|
| Max. resolution | Display | Internal storage capacity | Digital video output | Integrated battery | |
| MEDVM-D1 | 1920×1080 | 15.6″ TFT LCD | 64 GB | HDMI and SDI | 4 hours |
Digital video HD-Monitor for all PRIMUS® endoscopic devices
Compatible with all PRIMUS®Scopes

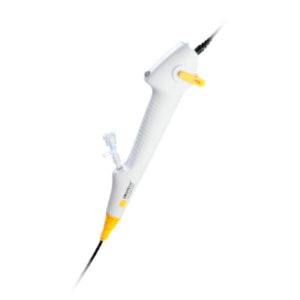

PRIMUS® Cystoscope
| Order code | Specifications | |||||
|---|---|---|---|---|---|---|
| Outer diameter tube | Working length of shaft | Size working channel | Deflection (up/down) | Field of view | Suction function (S) | |
| CYSHD-16 | 15.3 CH/FR | 400 mm | 6.6 CH/FR | Standard 210°/210° Reverse (R) 210°/210° |
110° | No |
| CYSHD-16-R | ||||||
| CYSHD-16S | Yes | |||||
| CYSHD-16S-R | ||||||
Single-use flexible high definition Cystoscope with 15.3 CH/FR outer diameter available also with suction function

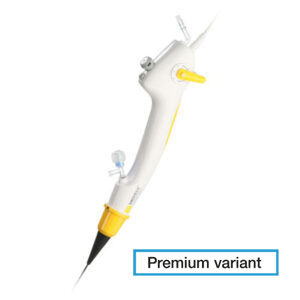

PRIMUS® Ureteroscope
| Variants | Order code | Specifications | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Outer diameter tube | Working length of shaft | Size working channel | Deflection (up/down) | Field of view | Bending Lock | Suction function (S) | Rotatable sleeve | ||
| Premium | URS-7.5S | 7.5 CH/FR | 700 mm | 3.6 CH/FR | Standard 330°/330° | 120° | Yes | Yes | Yes |
| URS-7.5S-R | Reverse (R) 330°/330° | ||||||||
| Economic | URS-8.4 | 8.4 CH/FR | 700 mm | 3.6 CH/FR | Standard 285°/285° | 110° | No | No | Yes |
| URS-8.4-R | Reverse (R) 285°/285° | ||||||||
